Home > products > Concrete Pump > Mixer Cement Pump Mixer Mini

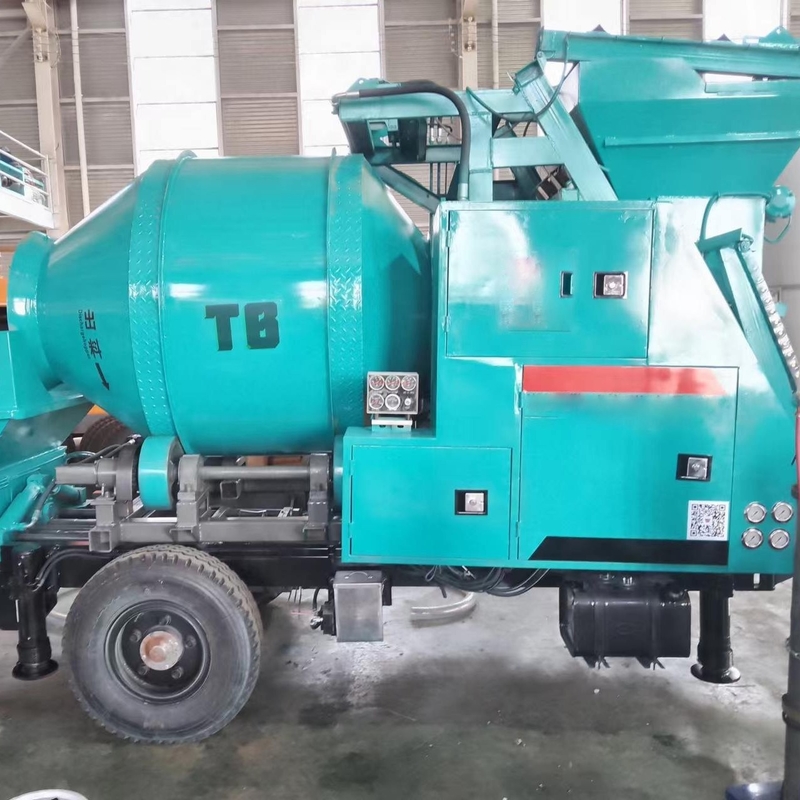

Mixer Cement Pump Mixer Mini

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: T6

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD18000-25000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price
Highlight:

mixer concrete pump

,

concrete pump mixer

,

cement mixer and pump

Application:
Concrete Pump
After-sales Service Provided:
Online Support
Application:
Concrete Pump
After-sales Service Provided:
Online Support
Mixer Cement Pump Mixer Mini

beton mixer cement pump and mixer mini concrete pump with mixer

Portable Concrete Mixer and Pump

The concrete mixing pump offers several advantages over traditional methods of concrete mixing and transportation:

  1. Efficiency and Time Savings: By combining the mixing and pumping functions, the concrete mixing pump eliminates the need for separate equipment and reduces the time required for concrete production and transportation. It allows for continuous and efficient concrete placement, enhancing project productivity.

  2. Versatility: The concrete mixing pump is highly versatile and can handle a wide range of concrete mixes, including low slump, high slump, and lightweight concrete. It can be used for various applications such as foundations, slabs, walls, and even vertical and overhead placements.

  3. Accessibility: The concrete mixing pump can reach areas that are challenging to access with traditional concrete delivery methods. It is particularly useful in congested or restricted construction sites where space is limited or obstacles hinder the movement of concrete trucks.

  4. Cost Savings: The concrete mixing pump reduces the need for manual labor and additional equipment, resulting in cost savings for construction projects. It also minimizes material wastage by allowing precise control over the amount of concrete needed for each application.

  5. On-Site Mixing: With a concrete mixing pump, concrete can be mixed on-site, eliminating the need for the transportation of pre-mixed concrete. This ensures the availability of fresh concrete, which is essential for achieving high-quality and durable construction.

Mixer Cement Pump Mixer Mini 0Mixer Cement Pump Mixer Mini 1

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.





Item
HBTS30R
HBTS40R
HBTS60R
HBTS80-13R
HBTS90-16R
Theoretical Displacement(m³/h)
30
40/26
60/38
80/73
90/50
Maximum Outlet pressure(Mpa)
10
10/6
12/7
13/7.5
16/9
Max. Conveying distance V.H.
140/600
140/600
160/800
180/900
260/1000
Engine Power(kw)
62.5
62.5
82
129
146
Delivery Cylinder Bore *Stroke(mm)
160*1000
160*1300
180*1300
200*1650
200*1800
Main Cylinder Bore *Stroke(mm)
100*1000
100*1300
110*1300
125*1650
140*1800
High And Low Voltage Switching
No
Have
Have
Have
Have
Hydraulic Tank Volume(l)
300
350
400
50
500
Hopper Volume (l)
90
90
115
230
230
Fuel Tank Volume(㎡)
0.4
0.4
0.5
0.8
0.8
Maximum Aggregate Material Diameter(mm)
20
40
50
50
50
Feeding Height(mm)
1250
1250
1300
1450
1450
L*W*h(mm)
4600*1750*2200
4800*1750*2200
5000*2100*2260
5900*2000*2260
6000*2000*2260
Host Quality(kg)
3700
390
4100
6300
6500
