Portable Concrete Mixer With Pump Mobile For Construction

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: T6

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD18000-25000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                portable concrete pump, portable concrete mixer with pump, mobile concrete mixer with pump


Application:

Concrete Pump

After-sales Service Provided:

Online Support

Application:	Concrete Pump
After-sales Service Provided:	Online Support

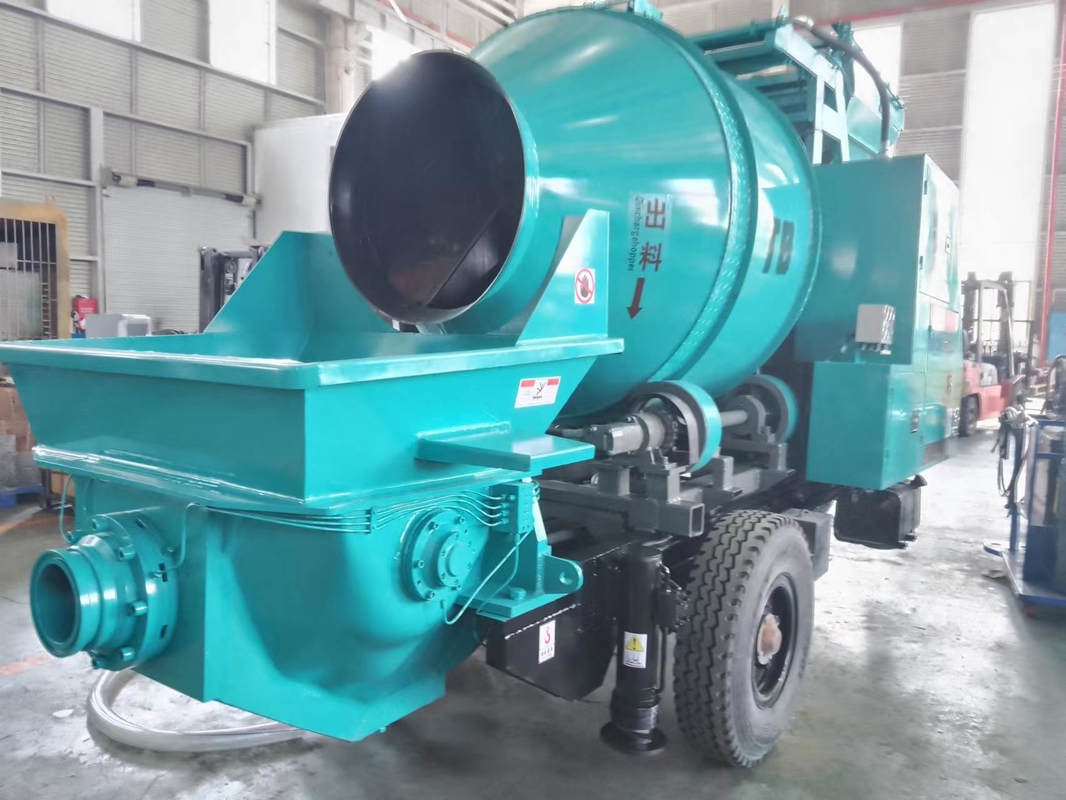

Portable Concrete Mixer With Pump Mobile For Construction

Portable Concrete Mixer and Pump Mobile Concrete Pump Mixer portable concrete mixer and pump For Construction

Portable Concrete Mixer and Pump is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.

Portable Concrete Mixer With Pump Mobile For Construction 0

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

Item	HBTS30R	HBTS40R	HBTS60R	HBTS80-13R	HBTS90-16R
Theoretical Displacement(m³/h)	30	40/26	60/38	80/73	90/50
Maximum Outlet pressure(Mpa)	10	10/6	12/7	13/7.5	16/9
Max. Conveying distance V.H.	140/600	140/600	160/800	180/900	260/1000
Engine Power(kw)	62.5	62.5	82	129	146
Delivery Cylinder Bore *Stroke(mm)	160*1000	160*1300	180*1300	200*1650	200*1800
Main Cylinder Bore *Stroke(mm)	100*1000	100*1300	110*1300	125*1650	140*1800
High And Low Voltage Switching	No	Have	Have	Have	Have
Hydraulic Tank Volume(l)	300	350	400	50	500
Hopper Volume (l)	90	90	115	230	230
Fuel Tank Volume(㎡)	0.4	0.4	0.5	0.8	0.8
Maximum Aggregate Material Diameter(mm)	20	40	50	50	50
Feeding Height(mm)	1250	1250	1300	1450	1450
LWh(mm)	460017502200	480017502200	500021002260	590020002260	600020002260
Host Quality(kg)	3700	390	4100	6300	6500
