Home > products > Bucket Type Batching Plant > Universal Stationary Concrete Batching Plant 35m3/H

Universal Stationary Concrete Batching Plant 35m3/H

Product Details

Place of Origin: Hunan

Brand Name: SUNNY

Model Number: HSZ35

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 11000-15000/ SET

Packaging Details: container

Delivery Time: 25-30 days

Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram

Supply Ability: 20 Set/Sets per Month

Get Best Price
Highlight:

stationary concrete batching plant

,

stationary concrete batching plant for sale

,

universal concrete batching plant

Maaterial:
Cement, Crushed Stone, Sands And So On
Application:
Building Works,Construction Projects,bridges,docks,airport
Control System:
Automatic PLC Control,totally Automatic
Productivity:
≤35m3/h
Mixer:
JS750 Twin-shaft Concrete Mixer
Warranty:
12 Months
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Maaterial:
Cement, Crushed Stone, Sands And So On
Application:
Building Works,Construction Projects,bridges,docks,airport
Control System:
Automatic PLC Control,totally Automatic
Productivity:
≤35m3/h
Mixer:
JS750 Twin-shaft Concrete Mixer
Warranty:
12 Months
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

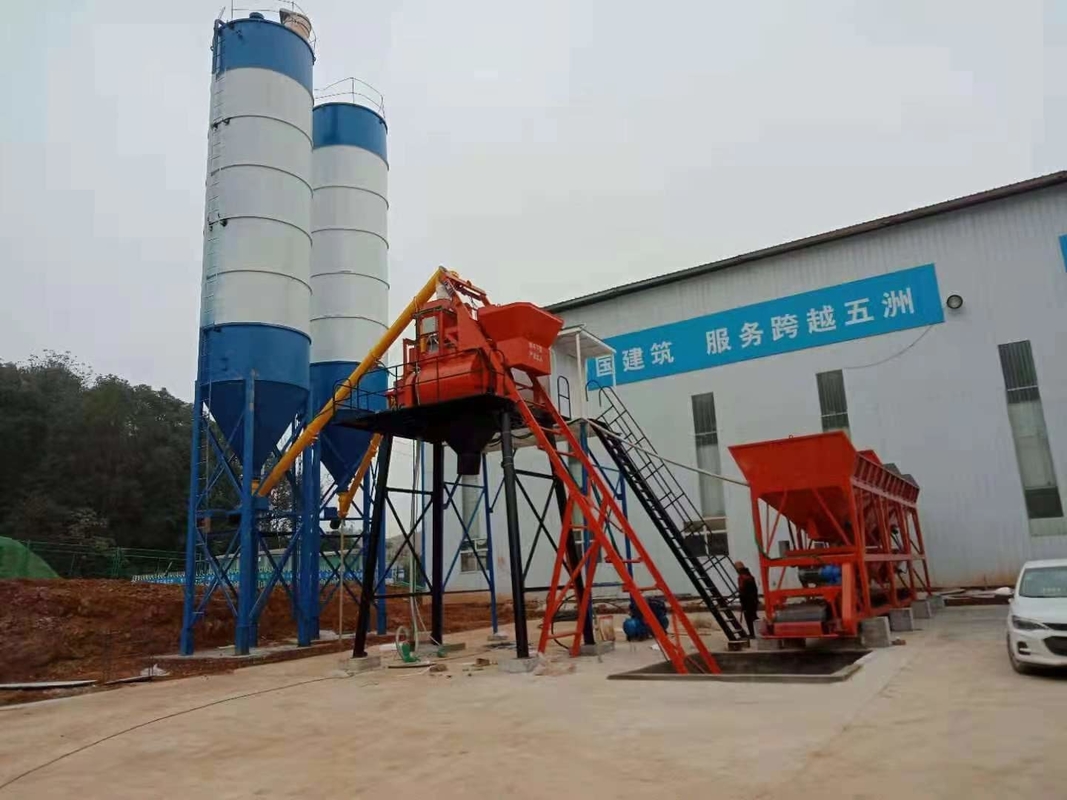

Universal Stationary Concrete Batching Plant 35m3/H

Bucket type Concrete Mixing Plant 35m3/h Concrete Batching Plant

Bucket type Concrete Mixing Plant 35m3/h Concrete Batching Plant



Furthermore, the HZS60 model offers flexibility in terms of configuration and customization. It can be tailored to meet specific project requirements, allowing adjustments in the capacity of the buckets, the number of ingredients, and the overall layout of the plant. This versatility makes it adaptable to a wide range of construction applications, providing enhanced efficiency and productivity.

In addition to its technical features, the HZS60 bucket type concrete mixing plant is designed with user convenience in mind. It incorporates user-friendly controls and a well-organized layout, making it easy for operators to monitor and control the batching process. The plant is also equipped with safety features to ensure a secure working environment for the operators.

Overall, the HZS60 bucket type concrete mixing plant is a reliable and efficient solution for large-scale construction projects. With its precise measurement, high productivity, and customizable design, it enables the production of high-quality concrete while meeting the demands of diverse construction applications.



Model HZS35 HZS50 HZS75 HZS100
Production in Theory (m3/h) 35 50 75 100
Mixer Type JS750 JS1000 JS1500 JS2000
Mixing Motor Power (KW) 2×15 2×18.5 2×30 2×37
Cycle time(S) 60 60 60 60
Mixer Discharging Volume(L) 750 1000 1500 2000
Maximum Particle Size of Aggregate(mm) 60 60 60 80
Batching Volume(L) 1200 1600 2400 3200
Aggregate Species 2-3 2-4 4 4
Aggregate lifting motor power(kw) 7.5 15 18.5 22
Discharging Height (m) 4 4 4 4
Installed Capacity(KW) 50 70 110 120



Universal Stationary Concrete Batching Plant 35m3/H 0

Features of concrete batching plant:
1.It adopts combined structure and unitized module, which is short, quick and very convenient for installation and demolition .

2.Increase the unloading angle of the aggregate bin to solve the problem of unloading difficulties caused by rain
3.It is convenient and quick to use the cylinder discharge or electric push rod to discharge.
4.The overall steel structure of the mixing station is made of high-quality steel, which has high overall structural strength and strong stability.
5.The mixing machine adopts the twin-shaft forced mixing main machine, which has strong mixing performance, uniform mixing and high productivity.
6.Excellent pneumatic components, electrical components, etc.; to ensure the reliability of the equipment, accurate metering performance.
7.Each maintenance and repair site is provided with a walking platform or a check ladder, and has sufficient operation space. Easy maintenance and repair 8.Environmental protection and energy saving, using pulse dust removal, recycling waste-water for reuse

Q: What kind of products do you have?
1. Stationary concrete batching plant arranges from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor and bolted cement silo.
Q: Are you trading company or manufacturer?
A: We are manufacturer. We can design and manufacturer products with our patent. Welcome to visit us to check it!
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
