Product Details
Place of Origin: Hunan
Brand Name: SUNNY
Model Number: HSZ50
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 11000-15000/ SET
Packaging Details: container
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability: 20 Set/Sets per Month
Maaterial: |
Cement, Crushed Stone, Sands And So On |
Application: |
Building Works,Construction Projects,bridges,docks,airport |
Control System: |
Automatic PLC Control,totally Automatic |
Productivity: |
≤35m3/h |
Mixer: |
JS750 Twin-shaft Concrete Mixer |
Warranty: |
12 Months |
Condition: |
New |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |
Maaterial: |
Cement, Crushed Stone, Sands And So On |
Application: |
Building Works,Construction Projects,bridges,docks,airport |
Control System: |
Automatic PLC Control,totally Automatic |
Productivity: |
≤35m3/h |
Mixer: |
JS750 Twin-shaft Concrete Mixer |
Warranty: |
12 Months |
Condition: |
New |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training |

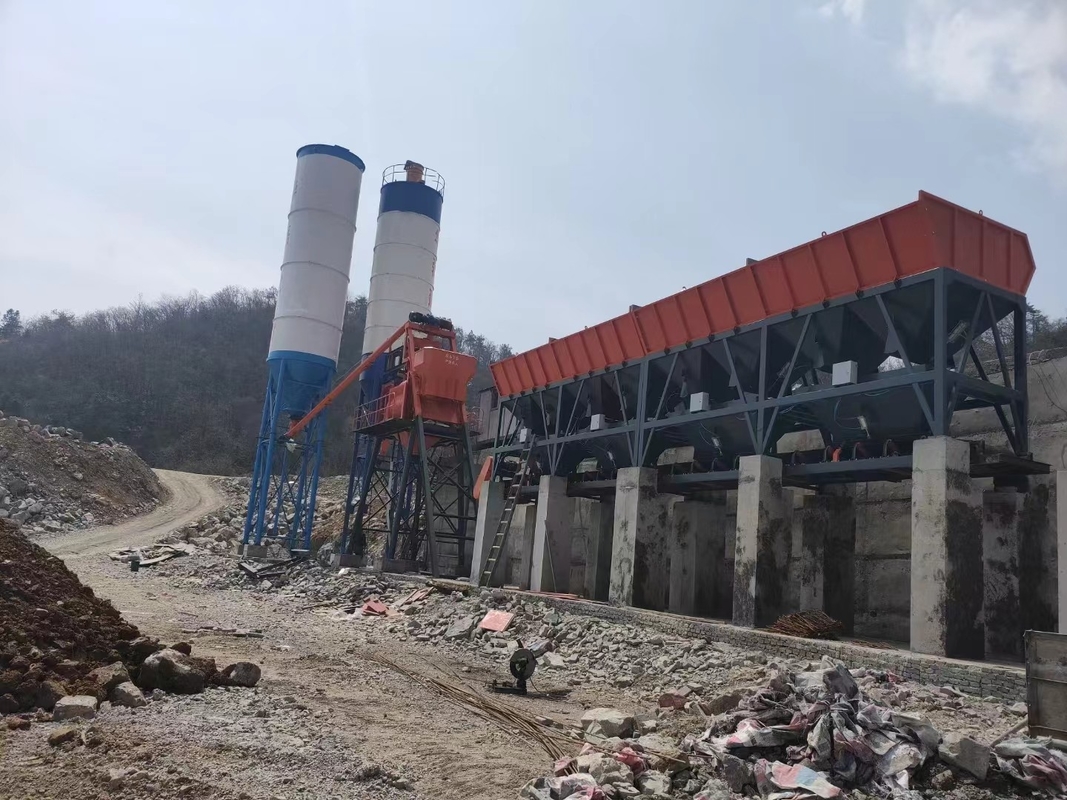

50m3/h small dry stationary ready mix concrete batching plant automatic compact concrete plants
Bucket type Concrete Mixing Plant 50m3/h Concrete Batching Plant
Once the mixing process is complete, the concrete is discharged from the mixer into a waiting truck or a concrete pump for transportation to the construction site. The bucket type batching plant can be configured to have multiple discharge points, allowing simultaneous loading of multiple trucks or pumps, which improves productivity and reduces waiting time.
Bucket type batching plants are known for their versatility and flexibility. They can be easily customized to meet specific project requirements by adjusting the capacity of the buckets, the number of ingredients, and the overall design of the plant. They are suitable for a wide range of applications, including large-scale infrastructure projects, commercial buildings, and residential construction.
In summary, a bucket type batching plant is a specialized concrete mixing plant that utilizes individual buckets for precise measurement and transfer of ingredients. It offers efficient and accurate batching, ensuring the production of high-quality concrete for construction projects of various sizes and types.
Model | HZS35 | HZS50 | HZS75 | HZS100 |
Production in Theory (m3/h) | 35 | 50 | 75 | 100 |
Mixer Type | JS750 | JS1000 | JS1500 | JS2000 |
Mixing Motor Power (KW) | 2×15 | 2×18.5 | 2×30 | 2×37 |
Cycle time(S) | 60 | 60 | 60 | 60 |
Mixer Discharging Volume(L) | 750 | 1000 | 1500 | 2000 |
Maximum Particle Size of Aggregate(mm) | 60 | 60 | 60 | 80 |
Batching Volume(L) | 1200 | 1600 | 2400 | 3200 |
Aggregate Species | 2-3 | 2-4 | 4 | 4 |
Aggregate lifting motor power(kw) | 7.5 | 15 | 18.5 | 22 |
Discharging Height (m) | 4 | 4 | 4 | 4 |
Installed Capacity(KW) | 50 | 70 | 110 | 120 |
