Home > products > Concrete Pump > Small Concrete Mixer With Pump Hose Self-Loading Mixer

Small Concrete Mixer With Pump Hose Self-Loading Mixer

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: T6

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD18000-25000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price
Highlight:

small concrete mixer with pump

,

small concrete mixer pump

,

concrete mixer pump

Application:
Concrete Pump
After-sales Service Provided:
Online Support
Application:
Concrete Pump
After-sales Service Provided:
Online Support
Small Concrete Mixer With Pump Hose Self-Loading Mixer

concrete mixer with pump mixer with hose pump self-loading mixer concrete pump

Portable Concrete Mixer and Pump is the newest products patented by our company, it is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.

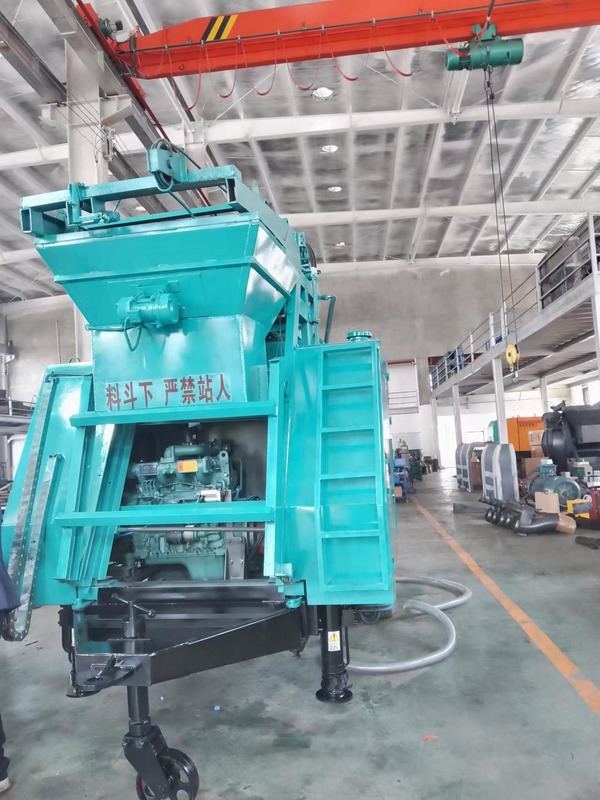

Small Concrete Mixer With Pump Hose Self-Loading Mixer 0Small Concrete Mixer With Pump Hose Self-Loading Mixer 1

  1. Accessibility: The concrete mixing pump can reach areas that are challenging to access with traditional concrete delivery methods. It is particularly useful in congested or restricted construction sites where space is limited or obstacles hinder the movement of concrete trucks.

  2. Cost Savings: The concrete mixing pump reduces the need for manual labor and additional equipment, resulting in cost savings for construction projects. It also minimizes material wastage by allowing precise control over the amount of concrete needed for each application.

  3. On-Site Mixing: With a concrete mixing pump, concrete can be mixed on-site, eliminating the need for the transportation of pre-mixed concrete. This ensures the availability of fresh concrete, which is essential for achieving high-quality and durable construction.

In conclusion, the concrete mixing pump is a versatile and efficient solution for mixing and delivering concrete at construction sites. Its integration of mixing and pumping functions provides numerous benefits in terms of productivity, convenience, and cost-effectiveness, making it a valuable asset for construction projects of various sizes and complexities.





Item
HBTS30R
HBTS40R
HBTS60R
HBTS80-13R
HBTS90-16R
Theoretical Displacement(m³/h)
30
40/26
60/38
80/73
90/50
Maximum Outlet pressure(Mpa)
10
10/6
12/7
13/7.5
16/9
Max. Conveying distance V.H.
140/600
140/600
160/800
180/900
260/1000
Engine Power(kw)
62.5
62.5
82
129
146
Delivery Cylinder Bore *Stroke(mm)
160*1000
160*1300
180*1300
200*1650
200*1800
Main Cylinder Bore *Stroke(mm)
100*1000
100*1300
110*1300
125*1650
140*1800
High And Low Voltage Switching
No
Have
Have
Have
Have
Hydraulic Tank Volume(l)
300
350
400
50
500
Hopper Volume (l)
90
90
115
230
230
Fuel Tank Volume(㎡)
0.4
0.4
0.5
0.8
0.8
Maximum Aggregate Material Diameter(mm)
20
40
50
50
50
Feeding Height(mm)
1250
1250
1300
1450
1450
L*W*h(mm)
4600*1750*2200
4800*1750*2200
5000*2100*2260
5900*2000*2260
6000*2000*2260
Host Quality(kg)
3700
390
4100
6300
6500
