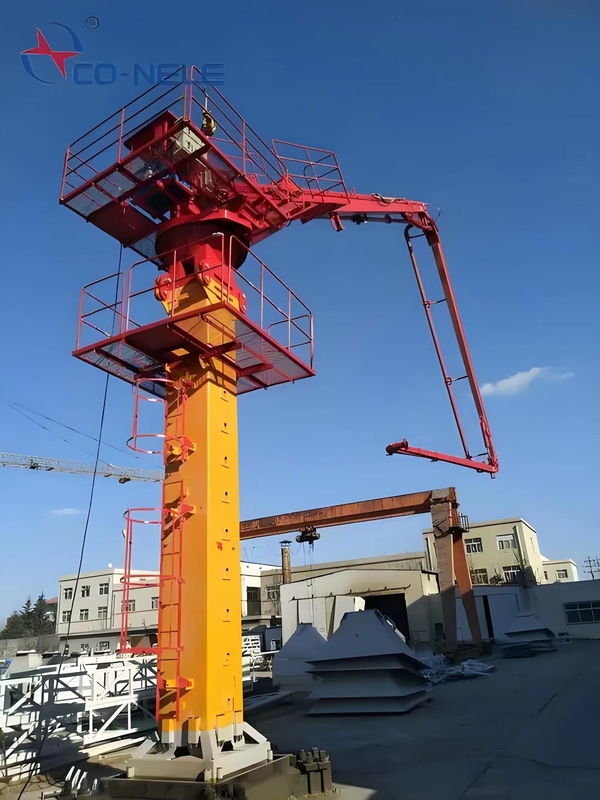

28m Putzmeister Concrete Placing Boom Stationary

Name: 28m Putzmeister Concrete Placing Boom Stationary
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HG28
Price: 8,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HG28

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD6000-10000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                putzmeister concrete placing boom, placing boom for concrete pump, concrete placing boom putzmeister


Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Construction Engineering
Keyword:	Concrete Pump

Condition:	New
Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application:	Construction Engineering
Keyword:	Concrete Pump

28m Putzmeister Concrete Placing Boom Stationary

28m concrete placing boom stationary putzmeister placing boom boom placer pump

The benefits of using a concrete placing pump are numerous. Firstly, it significantly improves productivity by delivering large volumes of concrete quickly and continuously. This reduces the reliance on manual labor and speeds up construction timelines. Secondly, a concrete placing pump enables precise placement of concrete, even in challenging or inaccessible areas. The operator can control the pumping speed, pressure, and flow rate, ensuring accurate positioning and minimizing material waste.

Moreover, concrete placing pumps offer versatility in handling different types of concrete mixes, including low slump, high slump, and lightweight concrete. They can be used for a wide range of construction applications, such as foundations, slabs, walls, columns, and even high-rise structures. The pumps are capable of pumping concrete both horizontally and vertically, allowing for flexibility in placement options and accommodating projects with varying elevation levels.

28m Putzmeister Concrete Placing Boom Stationary 0

Item	HG28	HG32
Max. Placing Radius (M)	27.5	32
Big Arm Length (M)	12.6	14.5
Big Arm Elevation (°)	0-65	0-65
Medium Arm Length (M)	8.8	9.2
Medium Arm Elevation (°)	0-180	0-180
Small Arm Length (M)	6.1	8
Small Arm Elevation (°)	0-180	0-180
Hose Length (M)	3	3
Concrete Delivery Pipe (Mm)	Ø125×6	Ø125×6
Tail Rotary Radius (M)	3.9	-
Total Power (Kw)	5.5	15
System Pressure (Mpa)	24	24
Rotary Speed (R/Min)	0.3-0.8	0.3-0.8
Rotary Range (°)	0-360	0-360
Lifting Speed (M/Min)	0.65	0.65
Lifting Height(M/Time)	≤3.6	≤3.6
Overall Height (M)	12.6	22.9
Bare Machine Weight (Kg)	10720	16700
Balance Weight(Kg)	4×2000	-
Control Mode	Panel/Wireless Remote Control
