Mobile Concrete Placing Boom Pump Portable

Name: Mobile Concrete Placing Boom Pump Portable
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HG28
Price: 8,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HG28

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD6000-10000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                mobile concrete placing boom, placing boom concrete pump, portable concrete placing boom


Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Construction Engineering
Keyword:	Concrete Pump

Condition:	New
Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application:	Construction Engineering
Keyword:	Concrete Pump

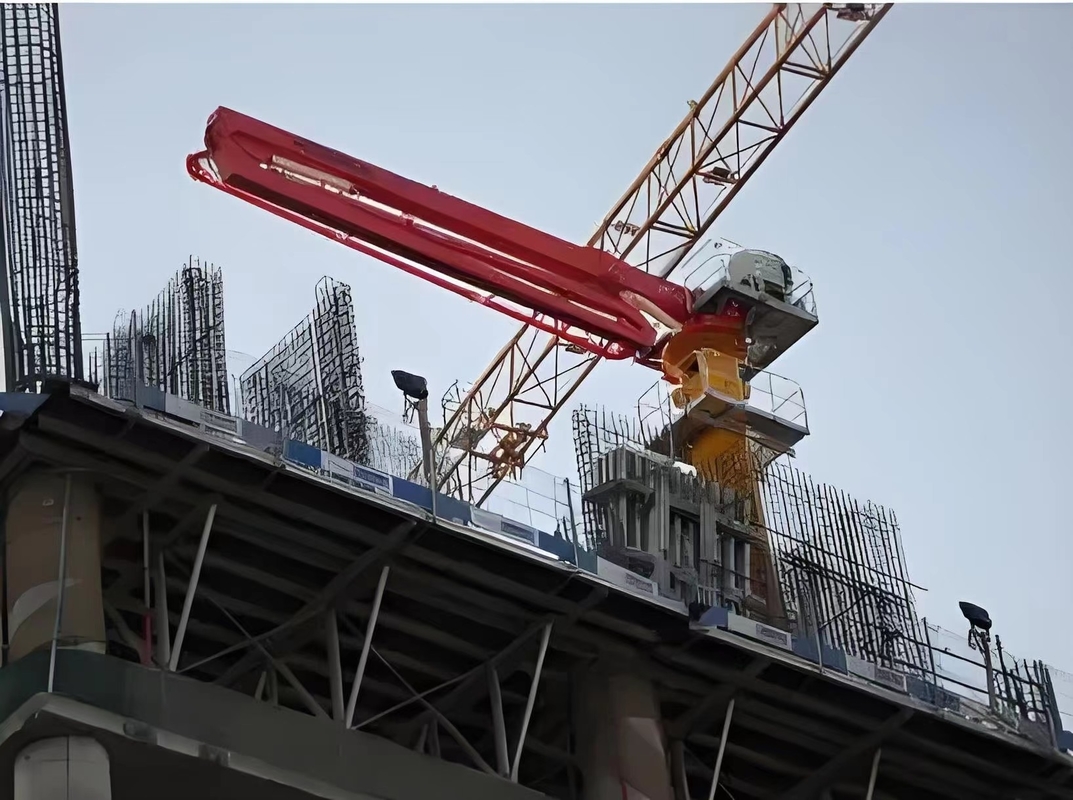

Mobile Concrete Placing Boom Pump Portable

placing boom concrete pump placing placer boom concrete placing equipment Concrete Pouring Machine

By utilizing a concrete placing pump, construction sites can reduce the need for manual labor and additional equipment, streamlining the construction process and improving overall safety. The pumps also help to optimize resource allocation and minimize material waste, enhancing cost-effectiveness.

In summary, a concrete placing pump has transformed the way concrete is transported and placed in construction projects. Its ability to efficiently and precisely deliver concrete over long distances and to elevated heights has made it an indispensable tool for contractors and construction companies. With improved productivity, accuracy, and versatility, a concrete placing pump plays a crucial role in achieving high-quality results in a shorter timeframe, contributing to the success of construction projects.

Mobile Concrete Placing Boom Pump Portable 0

Item	HG28	HG32
Max. Placing Radius (M)	27.5	32
Big Arm Length (M)	12.6	14.5
Big Arm Elevation (°)	0-65	0-65
Medium Arm Length (M)	8.8	9.2
Medium Arm Elevation (°)	0-180	0-180
Small Arm Length (M)	6.1	8
Small Arm Elevation (°)	0-180	0-180
Hose Length (M)	3	3
Concrete Delivery Pipe (Mm)	Ø125×6	Ø125×6
Tail Rotary Radius (M)	3.9	-
Total Power (Kw)	5.5	15
System Pressure (Mpa)	24	24
Rotary Speed (R/Min)	0.3-0.8	0.3-0.8
Rotary Range (°)	0-360	0-360
Lifting Speed (M/Min)	0.65	0.65
Lifting Height(M/Time)	≤3.6	≤3.6
Overall Height (M)	12.6	22.9
Bare Machine Weight (Kg)	10720	16700
Balance Weight(Kg)	4×2000	-
Control Mode	Panel/Wireless Remote Control
