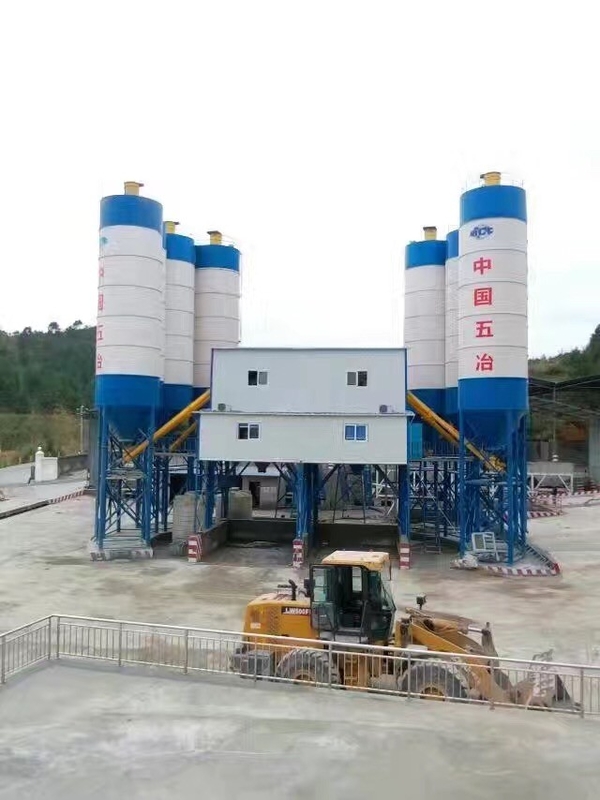

Roady HZS60 60m3/h Concrete Batching Plant with Automatic PLC Control Syste

Name: Roady HZS60 60m3/h Concrete Batching Plant with Automatic PLC Control Syste
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HSZ60
Price: 130,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: SUNNY

Model Number: HSZ60

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 110000-150000/ SET

Packaging Details: container

Delivery Time: 25-30 days

Payment Terms: L/C,T/T,D/P,Western Union,MoneyGram

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                60m3/h Concrete Batching Plant, Automatic Concrete Batching Plant, PLC Control Concrete Batching Plant


Maaterial:	Cement, Crushed Stone, Sands And So On	Application:	Building Works,Construction Projects,bridges,docks,airport
Control System:	Automatic PLC Control,totally Automatic	Productivity:	≤60m3/h
Mixer:	JS1000 Twin-shaft Concrete Mixer	Warranty:	12 Months
Condition:	New	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

Maaterial:	Cement, Crushed Stone, Sands And So On
Application:	Building Works,Construction Projects,bridges,docks,airport
Control System:	Automatic PLC Control,totally Automatic
Productivity:	≤60m3/h
Mixer:	JS1000 Twin-shaft Concrete Mixer
Warranty:	12 Months
Condition:	New
After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training

Roady HZS60 60m3/h Concrete Batching Plant with Automatic PLC Control Syste

High Efficiency 60m3/h Stationary Concrete Batching Plant Concrete Mixing Plant

High Efficiency 60m3/h Stationary Concrete Batching Plant Concrete Mixing Plant

Model: HZS60
Production Capacity: 60 m³/h
Mixer Type: Twin-shaft concrete mixer
Aggregate Batching System: PLD1600 with multiple hoppers
Weighing Accuracy: ±1% for aggregates, ±1% for cement, ±1% for water and additives
Control System: Fully automatic with PLC & touch screen operation
Power Supply: Customizable according to site requirements

The HZS60 Concrete Batching Plant is an ideal solution for contractors and construction companies seeking a reliable, efficient, and cost-effective concrete mixing solution.

Name of parameter	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical productivity	60 M3/h	90 M3/h	120 M3/h	180 M3/h	240m³/h
Model of mixer	JS1000	JS1500	JS2000	JS3000	JS4000
Mixing motor power	2x18.5Kw	2x30Kw	2x37Kw	2x55Kw	2*75Kw
Cycle period	60s	60s	60s	60s	60s
Volume of mixer	1000L	1500L	2000L	3000L	4000L
Unloading height	4.0m	4.0m	4.0m	4.0m	4.0m
Measuring range and precision of aggregate	(600-2000)≤±2%	(700-2400)≤±2%	(1000-3600)≤±2%	(1600-4800)≤±2%	(1600-4800)≤±2%
Measuring range and precision of cement	(300-1200)≤±1%	(300-1200)≤±1%	600-1800)≤±1%	(800-2400)≤±1%	(800-2400)≤±1%
Measuring range and precision of coal ash	(200-600)≤±1%	(200-600)≤±1%	(300-900)≤±1%	(400-1200)≤±1%	(400-1200)≤±2%
Measuring range and precision of water	200-600)≤±1%	(200-600)≤±1%	(200-700)≤±1%	(360-1200)≤±1%	(360-1200)≤±1%
Measuring range and precision of admixture	20-60)≤±1%	(20-60)≤±1%	(30-100)≤±1%	(36-120)≤±1%	(36-120)≤±1%

Roady HZS60 60m3/h Concrete Batching Plant with Automatic PLC Control Syste 0

Features of concrete batching plant:
1.It adopts combined structure and unitized module, which is short, quick and very convenient for installation and demolition .

2.Increase the unloading angle of the aggregate bin to solve the problem of unloading difficulties caused by rain

3.It is convenient and quick to use the cylinder discharge or electric push rod to discharge.

4.The overall steel structure of the mixing station is made of high-quality steel, which has high overall structural strength and strong stability.

5.The mixing machine adopts the twin-shaft forced mixing main machine, which has strong mixing performance, uniform mixing and high productivity.

6.Excellent pneumatic components, electrical components, etc.; to ensure the reliability of the equipment, accurate metering performance.

7.Each maintenance and repair site is provided with a walking platform or a check ladder, and has sufficient operation space. Easy maintenance and repair 8.Environmental protection and energy saving, using pulse dust removal, recycling waste-water for reuse
